What is an extruder?

• In the flexible packaging industry, an extruder is a machine used to shape materials in various ways in the plastics, rubber, and food packaging manufacturing industries. It processes raw materials such as pellets, powders, or dough into finished or semi-finished products. In blown film extrusion, the extruder melts polymers and pushes them through a die to form thin plastic films.

The extruder works in three main steps:

• Feeding: Raw material is fed into the system.
• Melting: Material is softened by heating.
• Shaping: Molten material is pushed through a die to give it the desired shape.

Main components of an extruder:

• Hopper: Through this, raw material is put into the extruder.
• Barrel: This is a very important part of the machine because it contains a screw. Heaters are fitted in the barrel, which melt the material by giving proper heat, and the screw rotates the material and takes it forward so that after uniform mixing it reaches the die and catches it.
• Screw: The main function of the screw is to send whatever plastic material is fed forward.
• Heater: Their job is to provide sufficient amount of heat to melt the material.
• Die: Its main function is to give the final shape to the molten plastic material.
• Drive system: It works to give power to the screw through an electric or hydraulic motor. With the help of which the screw rotates and sends the material forward.

How does the extruder work?

• A plastic extruder, also called an extrusion machine, is a mechanical device used to make plastic products. It melts plastic raw materials and forms them into continuous shapes. The process uses heat, pressure, and mechanical force to transform solid plastic into a molten or semi-molten state and then shapes and cools it to the desired shape.

The extruder is divided into different zones, each of which has a different function:

• Feed zone: raw material enters and is preheated.
• Compression zone: material is compressed, partially melted, by friction and heat.
• Metering zone: controls the uniform melting and flow of material as it reaches the die.

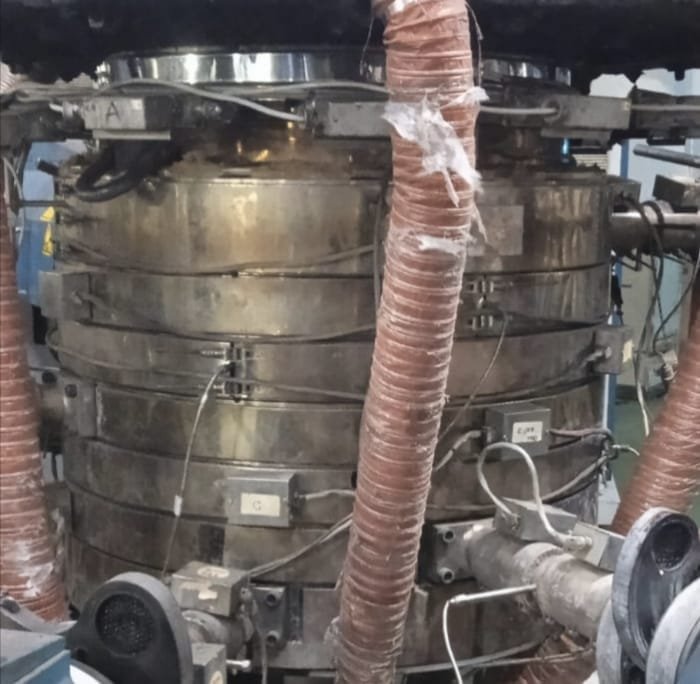

Extruder

Energy Balance Formula:

Types of Extruders:

Extruders can be classified based on design, screw configuration, and functionality.

1. Based on Design

a) Single-Screw Extruders:

• Structure: single rotating screw within the barrel.

• Applications: common in packaging, blown film, and pipe extrusion.

• Advantages: simple design, cost-effective, and easy maintenance.

• Disadvantages: limited mixing capabilities and pressure buildup.

b) Twin-Screw Extruders:

• Structure: Two intermeshing or non-intermeshing screws.

• Applications: mixing, compounding, and extrusion of heat-sensitive polymers.

• Advantages: superior mixing, better control over shear, and higher throughput.

• Disadvantages: Expensive and more complex maintenance.

2. Based on Screw Configuration

a) Co-rotating twin-screw extruders:

• Screws rotate in the same direction.
• Provide efficient mixing and are ideal for dispersive and distributive tasks.

b) Counter-rotating twin-screw extruders:

• Screws rotate in opposite directions.
• Used for shear-sensitive materials like PVC.

3. Based on Functionality

a) Hot Feed Extruders:

• Used in rubber processing.
• The material is preheated before entering the extruder.

b) Cold Feed Extruders:

• Do not require preheating.
• Common in plastics processing industries.

Applications

• Blown Film: Extruding polymers to produce plastic films for packaging.

• Pipes and Tubes: Manufacturing PVC or HDPE pipes.

• Food Industry: Creating snacks or pet food using food-grade extruders.

Screw Extruder:

The screw extruder is most important and most useful for the extrusion industry.

It has three types

• Single Screw Extruder (SSE)
• Twin Screw Extruder (TSE)
• Multi Screw Extruder (MSE)

Extruder



a) Single Screw Extruder (SSE):

• Single-screw extruders are the most widely used type of plastic extruder.
• The screw conveys, melts, and mixes the plastic material while generating the necessary pressure for extrusion.
• Single-screw extruders are versatile and suitable for a wide range of applications.

b) Twin Screw Extruder (TSE):

• Twin screw extruders have two intermeshing screws rotating within the barrel.
• These extruders offer enhanced mixing capabilities, improved processing of heat-sensitive materials, and the ability to handle a broader range of materials compared to single screw extruders.
• Twin screw extruders are commonly used in applications requiring excellent dispersion and compounding.

c) Multi-Screw Extruder (MSE):

• Multi-screw extruders consist of more than two screws rotating within the barrel.
• They are used for specific applications requiring specialized mixing, compounding, or devolatilization processes.
• Examples of multi-screw extruders include triple screw extruders and planetary roller extruders.

Read More about Extrusion

Conclusion:

Extruders are the backbone of modern manufacturing, enabling precise control over product quality and consistency. Engineers need to optimize parameters like screw speed, barrel temperature, and die pressure to enhance efficiency and product output.

For Example:

• In blown film extrusion, poor temperature control can lead to uneven thickness or poor mechanical properties.
• The choice between single and twin-screw extruders depends on the polymer and final product requirements.

Some important questions

Que: What is the difference between an extruder and an injector?

Ans: An extruder is a machine designed to melt, mix, shape, and form materials by pushing them through a die to create continuous profiles, sheets, films, or other shapes.
An injector, in the context of injection molding, is a device used to introduce melted material (usually plastic) into a mold cavity to create complex shapes and objects with high precision.

Que: What is the advantage of a single screw extruder?

Ans:-

• Simplicity and cost-effectiveness: Single screw extruders are simpler in design compared to twin screw extruders. This simplicity often translates to lower manufacturing and maintenance costs, making them a cost-effective option for basic extrusion processes.
• Ease of Operation: Due to their simpler design, single screw extruders are generally easier to operate and require less complex control systems. This can be beneficial for operators who are new to extrusion processes.
• Energy Efficiency: Single screw extruders typically consume less energy compared to twin screw extruders. This can result in lower operational costs over time, especially for applications where high levels of mixing and compounding are not essential.

Que: How do single screws differ from twin screw extruders?

Ans:- The main differences between single-screw and twin-screw extruders are the number of screws and the resulting processing capabilities. Twin screw extruders offer enhanced mixing, kneading, and processing capabilities due to the presence of two screws, making them suitable for more complex processes and materials. Single-screw extruders are simpler and typically used for basic extrusion processes.

Que: What is the process of extruding?

Ans: A plastics extruder, also known as an extrusion machine or extruder, is a mechanical device used in the manufacturing process of plastic products. It is a versatile machine that melts raw plastic materials such as pellets or granules and processes them into a continuous shape with a specific cross-sectional profile.

Que: What is the plastic extruder machine?

Ans:- A plastic extruder machine is a piece of equipment used in the plastics industry to process plastic raw materials and transform them into various shapes and forms. It’s a specialized machine designed to perform the plastic extrusion process, which involves melting, mixing, shaping, and solidifying plastic materials to create finished products.
