Extrusion Die
A die is a specialized tool used in extrusion to shape the material as it passes through. It is a critical component that determines the final product’s dimensions, shape, and surface finish.
Types of Extrusion Dies:
Sheet Die: Used for producing flat plastic sheets.
Pipe/Tubing Die: Used for manufacturing pipes or tubes.
Profile Die: Used for creating complex cross-sectional shapes.
Blown Film Die: Specifically designed for producing plastic films in blown film extrusion.
Coextrusion Die: Used for extruding multiple layers of material simultaneously.
Wire Coating Die: Used for coating wires with plastic insulation.

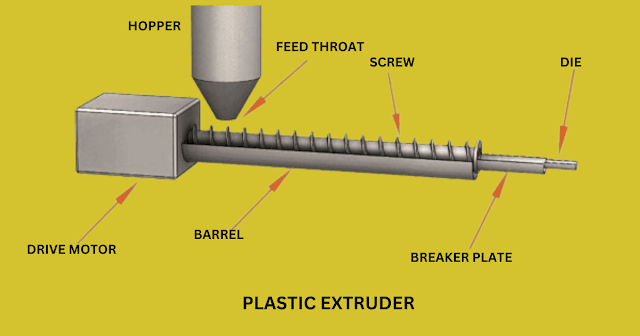

The extrusion die is one of the most important parts of the machine. Die gives the final and desired shape of material. Blown film dies are to measure the polymer melt at constant pressure and uniform rate and to transform it into a thin-walled tube while maintaining uniformity of the melt temperature. Air for inflating the film bubble is introduced via a channel in the core of the mandrel.
Types of Dies Used in Blown Film Extrusion
In blown film, the extrusion die includes different parts:
- Metal outer body
- Mandrel
- Outer lip
- Inner lip
- Internal heater
- Outer surface band heater
- Thermocouple
- Air inlet and outlet
Blown Film extrusion die-
- Side feed extrusion die
- Spider or bottom feed die
- Spiral mandrels die.
1. Side Feed Extrusion Die: –
The meaning of the given number of figures is:
1. Inflation air 2. Mandrel 3. Heater bands 4. Centering screw 5. Die gap
2. Bottom Feed Extrusion Die:
The meaning of a given number of figures:
1. Inflation air 2. Mandrel 3. Heater bands 4. Centering screw 5. Die gap
3. Spiral Mandrel Die:
Some dies are also used in blown Film Extrusion
Blown film extrusion dies are specifically designed for the production of plastic films using the blown film extrusion process. Here are some common types of blown film extrusion dies:
A. Annular Die:
An annular die is the most commonly used die for blown film extrusion. It consists of a circular die gap with an air ring surrounding it. The molten plastic is extruded through the die orifice, and a stream of air is introduced through the air ring to inflate and expand the molten tube into a bubble shape. The bubble is then cooled and collapsed to form a flat film.
B. Spiral mandrel die:
A spiral mandrel die is a variation of the annular die. It has a spiral-shaped mandrel inside the die, which imparts a helical flow pattern to the molten plastic. This design helps in improving the melt mixing and enhancing the film’s properties, such as clarity and tensile strength.
C. Tandem Die:
A tandem die consists of two or more concentric die gaps arranged in series. The molten plastic is extruded through each die gap successively, allowing for the production of multi-layer films. Tandem dies are used to create films with different layers, providing specific properties like barrier properties, strength, and appearance.
D. Coextrusion Die:
Coextrusion dies are used for producing multi-layer films in a single extrusion process. These dies have multiple channels or orifices through which different materials are simultaneously extruded to form a multilayer structure. Coextrusion dies enable the combination of various materials with different properties, such as barrier properties, toughness, and aesthetics, into a single film.
e. Die Inserts:
Die inserts are interchangeable components that can be inserted into a standard blown film die to change the film properties or structure. They are used to create specialized films with features like embossing, surface patterns, or specific layer arrangements.
f. Oscillating Die:
An oscillating die is designed to produce films with a wavy or oscillating profile. The die oscillates during the extrusion process, creating a rippled or corrugated pattern in the film. This type of die is used in applications such as decorative films, diffusers, and packaging.
Conculusion
- The extrusion die is the heart of the extrusion process, enabling the production of a wide range of products with precision and efficiency.
- Its design, maintenance, and operation are crucial for achieving high-quality output and minimizing downtime.
- By understanding its working principles and addressing potential challenges, manufacturers can maximize productivity and ensure consistent product quality in their extrusion operations.
Note:
- Read more about extrusion die
- Read more about types of die
FAQ of Extrusion Die
What is an extrusion die?
An extrusion die is a specialized tool used in the extrusion process to shape molten material into a specific cross-sectional profile. It is a critical component that determines the final product’s dimensions, shape, and surface finish.
What are the main type of extrusion dies?
- Sheet Die: For flat plastic sheets.
- Pipe/Tubing Die: For pipes or tubes.
- Profile Die: For complex
- cross-sectional shapes.
- Blown Film Die: For producing plastic films.
- Coextrusion Die: For multiple material layers.
- Wire Coating Die: For coating wires with plastic.
What materials are extrusion dies made from?
Extrusion dies are typically made from high-quality, durable materials such as:
- Tool steel
- Stainless steel
- Carbide
- Hardened alloys
These materials are chosen for their ability to withstand high temperatures, pressure, and wear.
What factors affect the performance of an extrusion die?
- Die design and geometry
- Material flow characteristics
- Temperature control
- Pressure uniformity
- Wear and tear over time
How do I maintain an extrusion die?
- Regularly clean the die to
- Remove polymer buildup.
- Inspect for wear, cracks, or damage.
- Lubricate moving parts if applicable.
- Store the die properly when not in use.
What are common problems with extrusion dies?
Uneven material flow
Die lines or defects in the product
Clogging or polymer buildup
Wear and tear leading to
dimensional inaccuracies
Can extrusion dies be customized?
Yes, extrusion dies can be custom-designed to produce specific shapes, sizes, and profiles based on the application requirements.
What is the difference between a single-manifold and a multi-manifold die?
Single-Manifold Die: Used for single-layer extrusion.
Multi-Manifold Die: Used for coextrusion, allowing multiple layers of different materials to be extruded simultaneously.
How do I choose the right extrusion die?
- Consider factors such as:
- Material type
- Product dimensions and shape
- Production volume
- Required surface finish
- Budget and maintenance requirements
What is a blown film extrusion die?
A blown film extrusion die is a specialized die used to produce thin, tubular plastic films. It shapes the molten polymer into a bubble, which is then cooled, flattened, and wound into rolls.
What are the types of blown film extrusion dies?
Spiral Mandrel Die: Most common, ensures uniform thickness.
Side Feed Die: Polymer is fed from the side.
Annular Die: Simple design for tubular films.
Rotating Die: Rotates to randomize thickness variations.
