Introduction to Drive System in Blown Film Extrusion Machine
The drive system is a critical component of a blown film extrusion machine, acting as the driving force behind the whole process. Its primary role is to provide the accurate rotational motion required by the extrusion screw to melt and convey the polymer material through the die. This motion is necessary for producing consistent, high-quality films.
Key Points:
1. Role of the Drive System:
- Converts electrical energy into mechanical energy to rotate the screw.
- Maintains accurate speed control, ensuring uniform film thickness and quality.
- Modify to variations in material type, process conditions, and production rates.
2. Importance of Accuracy
- The rotational speed of the extrusion screw directly influences the melting, mixing, and output rate of the polymer.
- Any inconsistency in the drive can lead to defects in the film, such as uneven thickness or poor mechanical properties.
3. Energy efficiency and reliability:
- Modern drive systems are designed for high efficiency, minimizing energy consumption while delivering consistent power.
- A reliable drive system reduces downtime, ensuring continuous production.
4. Adaptability and Control:
- Advanced drives, especially variable-speed drives (VSDs), allow for perfection of screw speed and torque.
- This adaptability is crucial for optimizing the extrusion process for different materials and product specifications.
Components of a Drive System

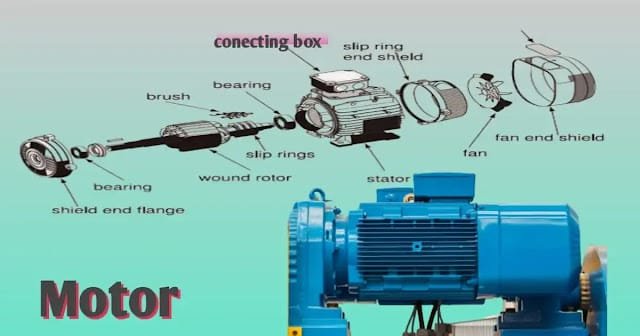

Motor:
Converts electrical energy into mechanical motion.
Gearbox:
Modifies the torque and speed from the motor to assemble the needs of the extrusion screw.
Coupling:
Transfers motion from the motor to the screw.
Drive Controller:
Regulates motor speed and ensures accuracy.
Key Element Of The Drive System:
Power Source:
- This is the primary energy supply that drives the system, such as an electric motor, internal combustion engine, or hydraulic power unit.
Motor Controller:
- The motor controller is responsible for regulating and controlling the motor’s speed, torque, and direction of rotation. It receives input signals and provides the necessary electrical signals to the motor to achieve the desired operation.
Drive Unit:
- The drive unit consists of various components that convert and transmit power from the power source to the mechanical load. It may include gearboxes, belts, pulleys, couplings, chains, or other transmission mechanisms that transfer rotational motion or force.
Control System:
- The control system coordinates the operation of the motor and drive unit. It may include sensors, feedback devices, and programmable logic controllers (PLCs) to monitor and adjust parameters such as speed, torque, position, or other performance characteristics.
Feedback System:
- A feedback system provides information about the actual performance of the drive system, allowing for real-time adjustments and control. It typically includes sensors or encoders that measure variables such as speed, position, temperature, or load.
- The drive system’s main purpose is to regulate and optimize the transfer of power from the power source to the mechanical load, ensuring efficient and precise control over speed, torque, and other relevant parameters.
Drive systems are implemented in a broad range of applications: –
Industrial machinery, automotive systems, robotics, extrusion processes, and many others, where accurate and controlled power transmission is required.
Type of Drive System:
1. Mechanical Drives:
Mechanical drives use mechanical components such as gears, belts, pulleys, and chains to transmit power and control motion between the motor and the driven load. They are simple and widely used in various applications, including conveyors, machine tools, and vehicles.
2. Electrical Drives:
Electrical drives utilize electronic components to control the speed and torque of the motor. They include various types such as:
AC Drives:
- AC drives, also known as variable frequency drives (VFDs), are used with AC motors. They control the motor speed by varying the frequency and voltage of the AC power supplied to the motor.
DC Drives:
- DC drives control the speed and torque of DC motors by regulating the voltage and current supplied to the motor. They are widely used in applications that require precise control, such as robotics and extrusion.
Servo Drives:
- Servo drives are high-performance drives used for precise motion control applications. They combine a servo motor with a feedback system and advanced control algorithms to achieve accurate positioning, speed control, and torque regulation.
3. Hydraulic drives:
Hydraulic drives use hydraulic fluid and pumps to transmit power and control motion. They are commonly used in heavy-duty applications that require high force, such as construction equipment and presses.
4. Pneumatic drives:
Pneumatic drives use compressed air to generate motion and control mechanisms. They are often used in applications where precise control is not required, such as pneumatic actuators in assembly lines and industrial automation.
5. Integrated Drives:
Integrated drives combine the motor, drive electronics, and control system into a single unit. These compact drives are convenient for small-scale applications or when space is limited.
Conclusion:
- These are just a few examples of drive types, and there may be specific variations or hybrid systems tailored to specific applications. The selection of the drive type depends on factors like the desired level of control, power requirements, speed range, torque demands, and the specific needs of the application or industry.
Note: Read more about Drive System
 |
| Drive system |
FAQ of Drive System
What is the role of the drive system in a blown film extrusion machine?
- The drive system controls the speed and torque of the motors that drive key components such as the extruder screw, nip rollers, and winder. It ensures consistent film thickness, proper tension, and smooth operation throughout the extrusion process.
What types of motors are commonly used in blown film extrusion drive systems?
- AC Motors: Often used for their reliability and efficiency.
- DC Motors: Less common but used in older systems.
- Servo motors: Provide precise control and are used in advanced systems for better speed and tension regulation.
How does the drive system affect film quality?
The drive system directly impacts:
- Film Thickness: Inconsistent motor speeds can lead to uneven thickness.
Tension Control: Poor tension management can cause wrinkles or breaks in the film. - Output Consistency: Proper synchronization between the extruder, nip rollers, and winder ensures uniform output.
What are the common issues with drive systems in blown film extrusion?
- Speed Fluctuations: Caused by motor or controller malfunctions.
- Overheating: Due to excessive load or poor cooling.
- Mechanical Wear: Leads to reduced efficiency and increased downtime.
- Electrical Failures: Such as short circuits or power surges.
How can I maintain the drive system for ideal performance?
- Regularly inspect and lubricate mechanical components.
- Monitor motor temperatures and ensure proper cooling.
- Check electrical connections and wiring for wear or damage.
- Calibrate speed controllers and tension systems periodically.
What is the importance of synchronization in the drive system?
- Synchronization ensures that all components (extruder, nip rollers, winder) operate at the correct speeds relative to each other.
- This prevents issues like film stretching, wrinkling, or tearing.
Can I upgrade the drive system in an older blown film extrusion machine?
- Yes, upgrading to modern AC or servo motors with advanced controllers can improve efficiency, precision, and energy savings.
- However, ensure compatibility with existing mechanical components.
How do I troubleshoot drive system problems?
- Check Power Supply: Ensure stable voltage and current.
- Inspect motors: Look for overheating or unusual noises.
- Test Controllers: Verify that speed and torque settings are correct.
- Examine mechanical components: Look for misalignment or wear.
What is the role of a variable frequency drive (VFD) in the system?
- A VFD controls the speed of AC motors by adjusting the frequency and voltage of the power supply. It allows for precise speed control, energy savings, and smoother operation.
How do I choose the right drive system for my blown film extrusion machine?
- Production Requirements: Speed, output, and film type.
- Motor Type: AC, DC, or servo motors.
- Control Features: Precision, automation, and synchronization capabilities.
- Energy Efficiency: Look for systems with low power consumption.
- Budget: Balance cost with long-term performance and maintenance needs.
What are the signs of a failing drive system?
Inconsistent film thickness.
Frequent motor overheating.
Unusual noises or vibrations.
Sudden stops or jerky movements.
Increased energy consumption.
How does the drive system impact energy consumption?
An inefficient drive system can lead to higher energy usage due to:
- Overloading motors.
- Poor synchronization is causing unnecessary strain.
- Outdated technology with lower energy efficiency.
What safety precautions should I take with the drive system?
Regularly inspect electrical components for damage.
Ensure proper grounding and insulation.
Use protective covers on moving parts.
Train operators on safe handling and emergency procedures.
