Introduction
In blown film extrusion, the nip and second nip are sets of rolls that play a crucial role in shaping and cooling the extruded film tube. Nip pressure is a critical parameter in the blown film extrusion process. It refers to the pressure applied between the nip rolls (also known as pinch rolls) that flatten the molten bubble of plastic into a flat film. Proper control of nip pressure is essential for achieving uniform film thickness, a good surface finish, and overall film quality.
Nip pressure
- In the blown film extrusion process, molten plastic is extruded through a circular die to form a tube or bubble.
- This bubble is then inflated by air pressure to the desired diameter and thickness.
The inflated bubble is then collapsed into a flat film by passing it through a set of nip rolls. - The nip rolls are typically two parallel rolls that rotate in opposite directions to pull the film and flatten the bubble.
Application of Nip Pressure
- Nip pressure is the force exerted by the nip rolls to flatten the bubble and ensure proper adhesion of the film layers.
- This pressure must be carefully controlled to avoid defects such as wrinkles, uneven thickness, or poor adhesion.
Factors Affecting Nip Pressure
Film Thickness:
- Thicker films generally require higher nip pressure.
Film Width:
- Wider films may need higher nip pressure to ensure uniform flattening.
Material Properties:
- Different polymers have varying melt strengths and viscosities, affecting the required nip pressure.
Line Speed:
- Higher line speeds may require adjustments in nip pressure to maintain film quality.
Adjusting Nip Pressure
- Nip pressure is typically adjusted using hydraulic or pneumatic systems that control the force applied by the nip rolls.
- Operators must monitor the film quality and make adjustments as necessary to maintain optimal nip pressure.
Monitoring and Control
- Modern blown film machines often include sensors and control systems to monitor and automatically adjust nip pressure.
- These systems help maintain consistent film quality and reduce the need for manual adjustments.
Second Nip Pressure:
The pressure exerted by the second set of rolls, which typically follows the first nip.
- Additional cooling: The second nip provides further cooling, ensuring complete solidification.
- Tension Control: It helps to control the tension on the film, preventing wrinkles or stretching.
- Surface Finish Enhancement: The second nip can further refine the surface finish of the film.
Why is pressure important?
Optimal nip and second nip pressure are critical for producing high-quality blown film.
Incorrect pressure can lead to various defects, including:
Wrinkle:
Insufficient pressure can cause the film to wrinkle.
Gauging Issues:
Improper pressure can lead to variations in film thickness.
Poor surface finishing:
Inadequate pressure can result in a rough or uneven surface.
Film Tears:
Excessive pressure can cause the film to tear or break.
Conclusion:
- Nip pressure is a vital parameter in the blown film extrusion process, directly impacting film quality and production efficiency.

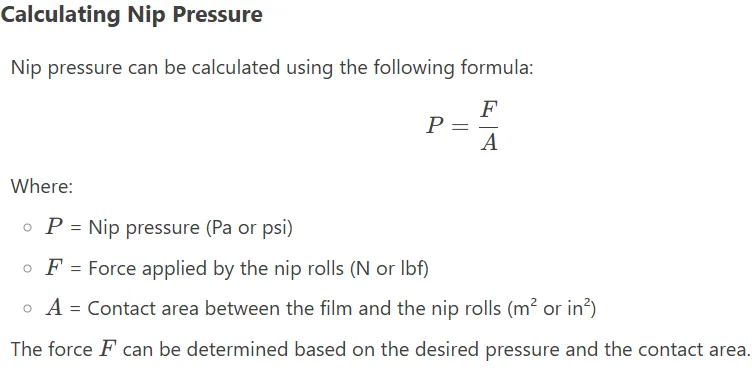

- By understanding the factors affecting nip pressure and using appropriate formulas and control systems, operators can ensure optimal performance and high-quality film production.
- Proper monitoring and adjustment of nip pressure are essential for achieving uniform film thickness, good surface finish, and overall film quality.
- By carefully controlling the nip and second nip pressure, manufacturers can produce film with consistent thickness, smooth surface, and desired mechanical properties.
