Extrusion Die

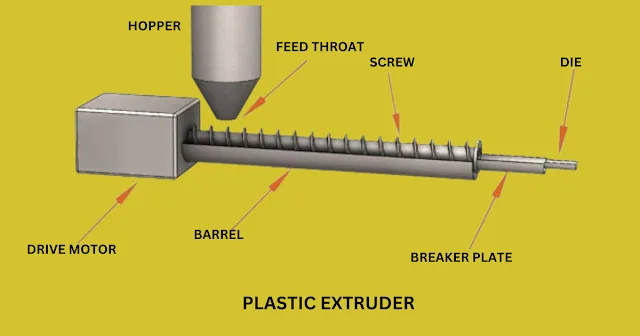

A die is a specialized tool used in extrusion to shape the material as it passes through. It is a critical component that determines the final product’s dimensions, shape, and surface finish.

Types of Extrusion Dies:

  1. Sheet Die: Used for producing flat plastic sheets.

  2. Pipe/Tubing Die: Used for manufacturing pipes or tubes.

  3. Profile Die: Used for creating complex cross-sectional shapes.

  4. Blown Film Die: Specifically designed for producing plastic films in blown film extrusion.

  5. Coextrusion Die: Used for extruding multiple layers of material simultaneously.

  6. Wire Coating Die: Used for coating wires with plastic insulation.

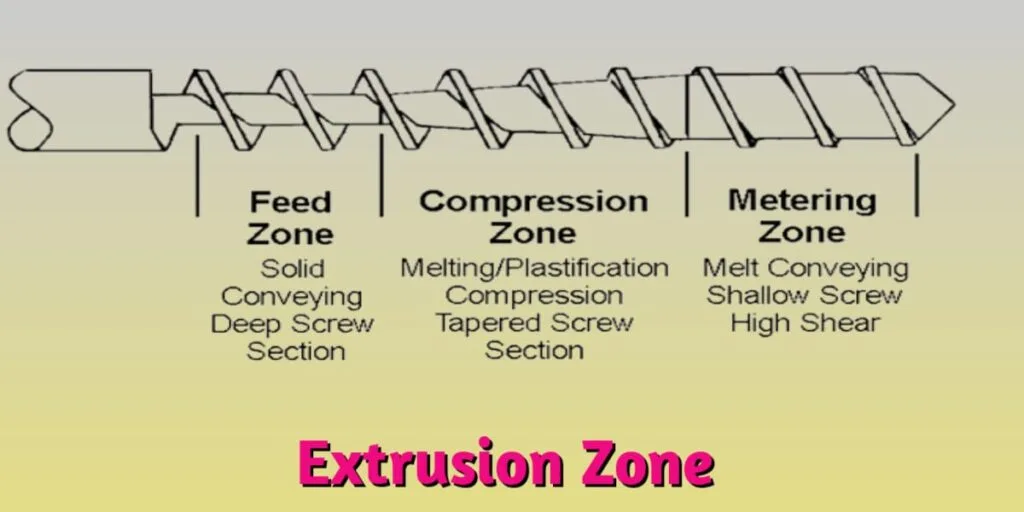

The extrusion die is one of the most important parts of the machine. Die gives the final and desired shape of material. Blown film dies are to measure the polymer melt at constant pressure and uniform rate and to transform it into a thin-walled tube while maintaining uniformity of the melt temperature. Air for inflating the film bubble is introduced via a channel in the core of the mandrel.

Types of Dies Used in Blown Film Extrusion

In blown film, the extrusion die includes different parts:

  • Metal outer body
  • Mandrel
  • Outer lip
  • Inner lip
  • Internal heater
  • Outer surface band heater
  • Thermocouple
  • Air inlet and outlet

Blown Film extrusion die-

  1. Side feed extrusion die
  2. Spider or bottom feed die
  3. Spiral mandrels die.

1. Side Feed Extrusion Die: –

A side-feed extrusion die is a type of extrusion die where the material is introduced into the die from the side. It is commonly used in the production of complex profiles or products with intricate internal structures. The die consists of a chamber or manifold system that receives the material from a side-mounted extruder or auxiliary material feed system. The material is then distributed through channels or passages within the die to shape it into the desired form. Side feed extrusion dies provide flexibility in design and allow for the creation of custom profiles with precise control over dimensions and features.
Side Feed Die

The meaning of the given number of figures is:

1. Inflation air 2. Mandrel   3. Heater bands   4. Centering screw 5. Die gap

2. Bottom Feed Extrusion Die:

A bottom-feed extrusion die is a type of extrusion die where the material is fed into the die from the bottom. It is typically used for simpler profiles or products with uniform cross-sections. The material is introduced into the die from the rear through an opening located at the bottom. It then flows through the die channels, taking on the shape of the die orifice. Bottom feed dies are commonly used in applications such as flat films, sheets, and basic profiles where complex internal structures are not required.

Bottom Feed Die

The meaning of a given number of figures:

1. Inflation air 2. Mandrel   3. Heater bands   4. Centering screw 5. Die gap

3. Spiral Mandrel Die:

A spiral mandrel die is a specific design of extrusion die used for blown film extrusion. It consists of a spiral-shaped mandral located inside the die. The mandrel imparts a helical flow pattern to the molten plastic as it passes through the die, resulting in improved melt mixing and enhanced film properties. The spiral mandrel die design helps in achieving better clarity, tensile strength, and other desired characteristics in the blown film. It is often used in applications where high-quality films are required, such as packaging, industrial films, and specialty film products.

Spiral Mandrel Die

Some dies are also used in blown Film Extrusion

Blown film extrusion dies are specifically designed for the production of plastic films using the blown film extrusion process. Here are some common types of blown film extrusion dies:

A. Annular Die:

An annular die is the most commonly used die for blown film extrusion. It consists of a circular die gap with an air ring surrounding it. The molten plastic is extruded through the die orifice, and a stream of air is introduced through the air ring to inflate and expand the molten tube into a bubble shape. The bubble is then cooled and collapsed to form a flat film.

B. Spiral mandrel die:

A spiral mandrel die is a variation of the annular die. It has a spiral-shaped mandrel inside the die, which imparts a helical flow pattern to the molten plastic. This design helps in improving the melt mixing and enhancing the film’s properties, such as clarity and tensile strength.

C. Tandem Die:

A tandem die consists of two or more concentric die gaps arranged in series. The molten plastic is extruded through each die gap successively, allowing for the production of multi-layer films. Tandem dies are used to create films with different layers, providing specific properties like barrier properties, strength, and appearance.

D. Coextrusion Die:

Coextrusion dies are used for producing multi-layer films in a single extrusion process. These dies have multiple channels or orifices through which different materials are simultaneously extruded to form a multilayer structure. Coextrusion dies enable the combination of various materials with different properties, such as barrier properties, toughness, and aesthetics, into a single film.

e. Die Inserts:

Die inserts are interchangeable components that can be inserted into a standard blown film die to change the film properties or structure. They are used to create specialized films with features like embossing, surface patterns, or specific layer arrangements.

f. Oscillating Die:

An oscillating die is designed to produce films with a wavy or oscillating profile. The die oscillates during the extrusion process, creating a rippled or corrugated pattern in the film. This type of die is used in applications such as decorative films, diffusers, and packaging.

Note: These are some of the commonly used types of blown film extrusion dies. The choice of die depends on factors such as the desired film structure, properties, and production requirements.


Conculusion

  • The extrusion die is the heart of the extrusion process, enabling the production of a wide range of products with precision and efficiency.
  • Its design, maintenance, and operation are crucial for achieving high-quality output and minimizing downtime.
  • By understanding its working principles and addressing potential challenges, manufacturers can maximize productivity and ensure consistent product quality in their extrusion operations.

Note:



FAQ of Extrusion Die

What is an extrusion die?

An extrusion die is a specialized tool used in the extrusion process to shape molten material into a specific cross-sectional profile. It is a critical component that determines the final product’s dimensions, shape, and surface finish.

  • Sheet Die: For flat plastic sheets.
  • Pipe/Tubing Die: For pipes or tubes.
  • Profile Die: For complex
  • cross-sectional shapes.
  • Blown Film Die: For producing plastic films.
  • Coextrusion Die: For multiple material layers.
  • Wire Coating Die: For coating wires with plastic.

Extrusion dies are typically made from high-quality, durable materials such as:

  • Tool steel
  • Stainless steel
  • Carbide
  • Hardened alloys

These materials are chosen for their ability to withstand high temperatures, pressure, and wear.

  • Die design and geometry
  • Material flow characteristics
  • Temperature control
  • Pressure uniformity
  • Wear and tear over time
  • Regularly clean the die to
  • Remove polymer buildup.
  • Inspect for wear, cracks, or damage.
  • Lubricate moving parts if applicable.
  • Store the die properly when not in use.



  • Uneven material flow

  • Die lines or defects in the product

  • Clogging or polymer buildup

  • Wear and tear leading to

  • dimensional inaccuracies

Yes, extrusion dies can be custom-designed to produce specific shapes, sizes, and profiles based on the application requirements.

Single-Manifold Die: Used for single-layer extrusion.
Multi-Manifold Die: Used for coextrusion, allowing multiple layers of different materials to be extruded simultaneously.

  • Consider factors such as:
  • Material type
  • Product dimensions and shape
  • Production volume
  • Required surface finish
  • Budget and maintenance requirements

A blown film extrusion die is a specialized die used to produce thin, tubular plastic films. It shapes the molten polymer into a bubble, which is then cooled, flattened, and wound into rolls.

Spiral Mandrel Die: Most common, ensures uniform thickness.
Side Feed Die: Polymer is fed from the side.
Annular Die: Simple design for tubular films.
Rotating Die: Rotates to randomize thickness variations.
